Suction-type multigun cabinet designed for faster cleaning, deburring, and surface finishing of multiple components. Enclosed dust-free system combines uniform blasting coverage, abrasive recovery, operator safety, and efficient high-volume industrial processing.

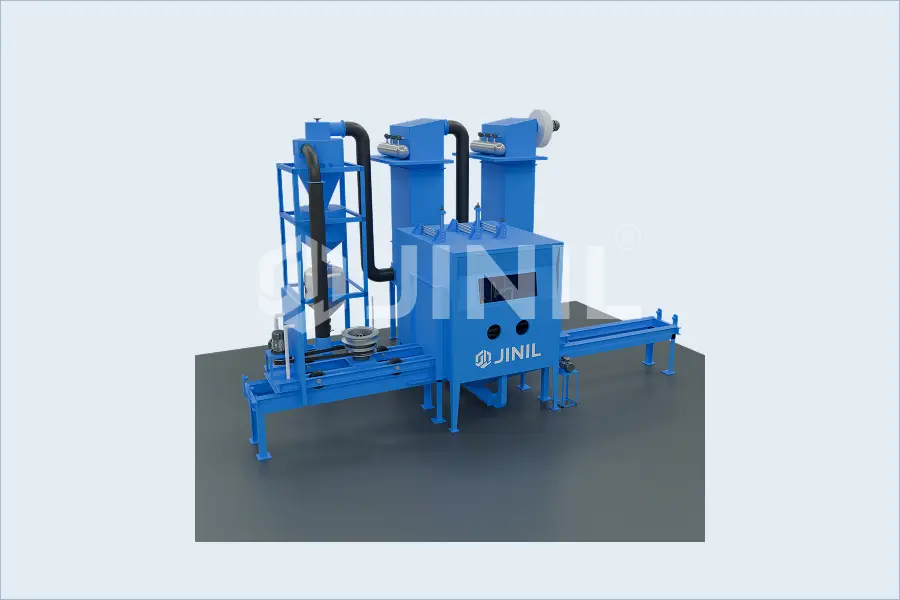

This Suction-type multigun cabinet uses an enclosed blasting machine with multiple blast guns to remove residue from the same piece simultaneously from multiple angles. Multiple guns reduce cleaning time and deliver a more uniform result than a single blast gun, which only addresses a small portion of the surface. It’s ideal for the challenging, high-value parts that a single blast gun would be inefficient at reaching.
Built as a multigun sandblasting machine, it works on the Venturi suction principle, drawing abrasive from the hopper and firing it through the guns onto the workpiece. The guns can be fixed at set angles or made movable to reach recesses and detailed features. As an industrial machine, it suits workshops cleaning batches of small to medium components where speed and consistency both matter.
HAS MOVABLE GUNS TO CLEAN CRITICAL COMPONENTS FROM DIFFERENT ANGLES
Smart Process Overview
The machine works on the Venturi Suction principle, but with more than one gun. Each gun blows a stream of compressed air and generates a vacuum, which sucks the abrasive into the airstream from the hopper. More than one gun can be fired at the part from various angles, so more than one surface is being cleaned simultaneously instead of one at a time.
The part sits on a grate or turntable while the guns blast it evenly from their set positions. Excess abrasive falls into the hopper for reuse; dust collection removes fine particles and dust from the area. In a single pass, more of the surface can be cleaned.
Built With Precision Components
Blasting Cabinet
Fabricated steel cabinet with wear-resistant lining, sized to hold components during multigun blasting.
Multiple Blasting Guns
Several suction guns with carbide nozzles are set at different angles to clean the part from many sides.
Movable Gun Mounts
Adjustable or movable gun brackets that let the guns reach recesses and detailed features.
Abrasive Hopper
Bottom hopper that collects and feeds abrasive back to the guns for continuous reuse.
Work Handling System
A grate or rotating turntable that holds and turns the part for even coverage from all guns.
Dust Collection Unit
Cartridge or bag filter collector for clear visibility and cleaner working conditions.
Inspection Window and Gloves
Viewing window with mounted gloves for safe handling and close control during cleaning.
Foot Pedal Control
Foot-operated start and stop, keeping the operator's hands free for the work.
Engineered Output Parameters
| Cabinet Construction | MS fabricated with wear-resistant lining |
|---|---|
| Number of Guns | Multiple (application-dependent) |
| Working Pressure | 5 - 7 bar |
| Air Consumption | Rises with gun count (per gun 12 - 30 CFM) |
| Nozzle Size | 4 - 8 mm |
| Abrasive Type | Aluminium Oxide / Garnet / Glass Beads / Steel Grit |
| Dust Collector | Cartridge / Bag Filter Type |
| Electrical Supply | 415V, 3 Phase, 50Hz |
Complete Support Portfolio
The multigun cabinet suits faster, all-round cleaning and finishing of small to medium components.
Cleaning complex parts from multiple angles
Rust and scale removal on batch components
Surface preparation before painting or coating
Deburring of machined and cast parts
Surface roughening before plating
Satin and decorative finishing
Cleaning precision engineering components
Operational Performance Benefits
The multigun design gives faster, more even cleaning than a single gun.
Rotates the part during blasting so all guns give even, all-round coverage.
Extra blast guns to raise coverage and cut cleaning time on larger batches.
Moves the guns in a set motion for uniform coverage with less operator effort.
Cleans dust and broken grit from the media so cleaner abrasive returns to the guns.
Automates cabinet functions for easier operation and repeatable cleaning results.
Cabinet built to suit specific component sizes and production requirements.
It is a suction blast cabinet fitted with several guns that clean a part from different angles at once. This covers more surface per pass, so cleaning is faster and more even.
A single gun cleans one area at a time, while multiple guns hit the part from several sides together. This saves time and gives a more uniform finish on complex parts.
The movable guns can be angled to reach recesses, cavities, and detailed features that a fixed nozzle would struggle to clean properly.
It suits small to medium components with complex shapes, cleaned in batches, where speed and an even finish across every piece both matter.
Yes. Each gun draws its own air, so total air use rises with the number of guns, and the compressor is sized to suit.
It runs common suction media such as aluminium oxide, glass beads, garnet, and finer steel grit, chosen to match the material and finish.
Yes. Gun count, turntable, reciprocator, PLC controls, and cabinet size can all be set to suit the parts and the production volume.
It draws dust and worn media out of the cabinet during blasting, keeping the window clear and supporting cleaner, safer working conditions.
