Closed loop conveyor hanger machine designed for uninterrupted cleaning of suspended components with uniform blasting coverage. Automated movement, reduced manual handling, and efficient abrasive recovery ensure high-productivity surface preparation performance.

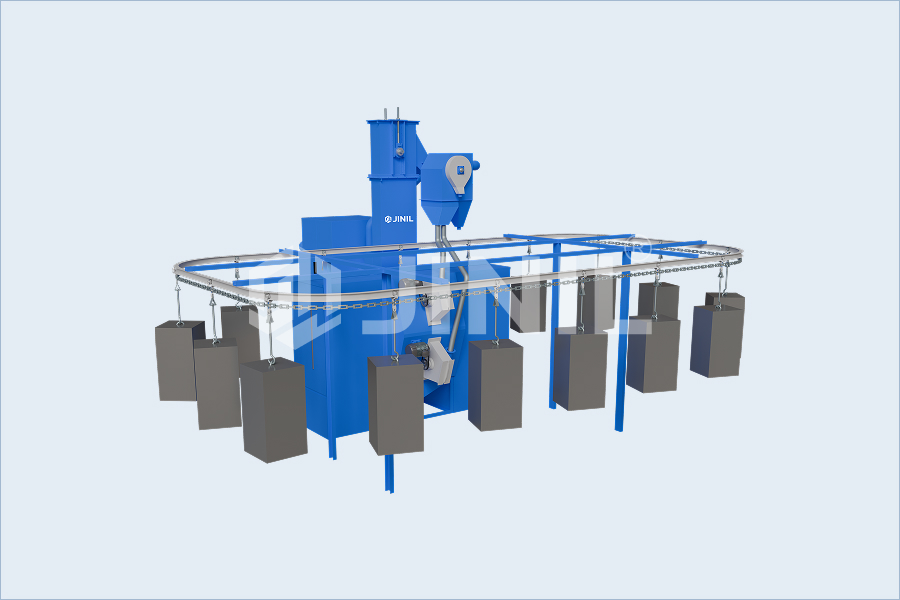

The closed-loop conveyor shot blasting machine is built for continuous, high-volume cleaning of medium to large parts that cannot be tumbled. Instead of loading one batch at a time, it carries components on hooks around a continuous overhead loop, so parts move through the blast chamber in an unbroken flow. Loading, blasting, and unloading all happen along the loop without stopping the line.
As a hanger-type airless shot blasting machine, it exposes suspended parts to high-velocity media from several blast wheel units while the hooks rotate for full coverage. Because the loop keeps moving, output stays high and manual handling stays low, which makes it well suited to mass-production plants that need cleaning to run in step with the rest of the line.
Available Configurations
Smart Process Overview
Components are hung on hooks fixed to a continuous closed-loop conveyor. The loop carries them into the blast chamber without pausing, so parts enter, get cleaned, and exit in a steady, unbroken cycle. Each hook rotates as it travels, so steel shot or steel grit from the blast wheel units reaches every face.
Because the conveyor runs as a loop, loading and unloading happen at a station outside the chamber while blasting continues inside. This is what lets the machine run continuously rather than in stop-start batches.
Spent abrasive falls to the hopper and passes through the screw conveyor, bucket elevator, and air wash separator for reuse. The dust collector removes dust and fines, and cleaned parts move on automatically to the next stage.
Built With Precision Components
Blast Wheel Units
7.5 HP to 30 HP high-efficiency turbines for strong abrasive throwing performance.
Blasting Chamber
Heavy-duty chamber with manganese steel or rubber-lined wear plates and replaceable liners.
Closed Loop Conveyor System
Continuous chain conveyor with hook capacity from 250 kg to 5 MT for automated component movement.
Rotation Mechanism
Job rotation system operating typically between 2 to 6 RPM for uniform blasting exposure.
Abrasive Circulation System
Includes screw conveyor, bucket elevator, and air wash separator for abrasive recovery.
Dust Collector
Bag filter or cartridge-type dust collector with pulse jet cleaning system.
Electrical Control Panel
PLC-based or conventional panel with operational controls and safety interlocks.
Safety System
Door interlocks and emergency stop system for operator safety.
Engineered Output Parameters
| Model | HT-250 | HT-500 | HT-1000 | HT-2000 | HT-5000 |
|---|---|---|---|---|---|
| Hook Capacity | 250 kg | 500 kg | 1 MT | 2 MT | 5 MT |
| Job Size (mm) | 800 × 1200 | 1000 × 1500 | 1500 × 2000 | 2000 × 2500 | Custom |
| Blast Wheels | 2 × 7.5 HP | 2 × 10 HP | 2 × 15 HP | 3 × 20 HP | 4 × 20 HP |
| Total Power | 20–25 kW | 30–40 kW | 50–60 kW | 80–100 kW | 120–160 kW |
| Production | 5–10 jobs/hr | 8–15 jobs/hr | 10–20 jobs/hr | 15–25 jobs/hr | Custom |
Custom Engineered Mechanism
The Continuous Closed Loop Type uses a fully automatic conveyor to move components through the blast chamber in an unbroken production cycle. It is built for uninterrupted processing, low manual handling, and a consistent finish across high-volume runs.
This configuration links easily into painting and coating lines, so material flows from cleaning straight into the next stage. Its steady conveyor movement and repeatable finish make it a strong fit for modern, high-output manufacturing plants.
The closed-loop conveyor machine is the right choice when parts cannot be tumbled, and production needs to run without stopping. It gives a uniform, damage-free finish on heavy and delicate fabricated parts while keeping the line moving.
Its modular design supports future expansion and integrates with downstream processes, delivering proven, continuous performance in heavy industries with high daily output.
Closed loop blasting fits industries that run parts in a steady, high-volume flow and want cleaning built into the line. Heavy machinery makers, fabrication units, automotive plants, and railway workshops use it to clean components continuously before coating. The industries below are where a continuous hanger line adds the most value.
Industrial Solutions
The closed-loop machine suits continuous cleaning of suspended parts in volume.
Continuous cleaning of fabricated structures
Descaling of welded assemblies in flow
Rust removal from heavy components
In-line pre-treatment before painting
Shot peening of parts in steady production
Cleaning of castings and forgings at volume
Industrial Solutions
Running parts on a continuous loop is what sets this machine apart.
Advanced Engineering Highlights
Customization options can be provided based on specific production requirements.
Additional System Enhancements
Provides centralized control, real-time monitoring, and process automation for improved efficiency and system visibility.
Adjusts conveyor speed to match production needs, ensuring consistent blasting quality and optimized processing time.
Adds loading and unloading stations along the loop so parts flow through without halting the cycle.
Removes contaminants from abrasive media, maintaining quality, improving performance, and extending media life.
Continuously monitors abrasive levels to ensure uninterrupted operation and consistent blasting performance.
Maintains required abrasive levels automatically, reducing downtime and ensuring continuous blasting efficiency.
Minimizes operational noise levels, improving workplace safety and ensuring compliance with industrial standards.
Prevents sparks from entering the dust system while maintaining a clean and safe working environment.
Links the conveyor directly to painting and drying so cleaned parts move straight into coating.
Measures load weight accurately to maintain balanced operation and ensure safe handling of components.
Enables real-time system tracking, performance monitoring, and predictive maintenance through connected digital systems.
It is a continuous machine where parts hang on hooks and travel around a closed loop conveyor through the blast chamber. Parts are cleaned in an unbroken flow rather than one batch at a time.
A batch machine stops to load and unload. The closed loop keeps moving, with loading and unloading at a station outside the chamber, so blasting never pauses.
Fabricated structures, heavy machinery parts, automotive components, castings, forgings, and irregularly shaped parts that need continuous, damage-free cleaning.
It enables continuous production, automatic part movement, low manual handling, and the highest throughput among hanger machines.
Mainly steel shot and steel grit, chosen to match the part and the finish. The media is recovered and reused automatically.
Yes. The loop conveyor links directly to painting, drying, and curing lines, so cleaned parts flow straight into coating.
Yes, it includes screw conveyors, bucket elevator, and separator systems for continuous abrasive recovery and reuse.
Yes, options such as SCADA controls, multiple hanger stations, tilting hangers, weighing systems, and line integration are available.
