Diabola conveyor system rotates pipes and round jobs during blasting for complete outer surface cleaning. Continuous handling improves productivity and ensures even blasting results.

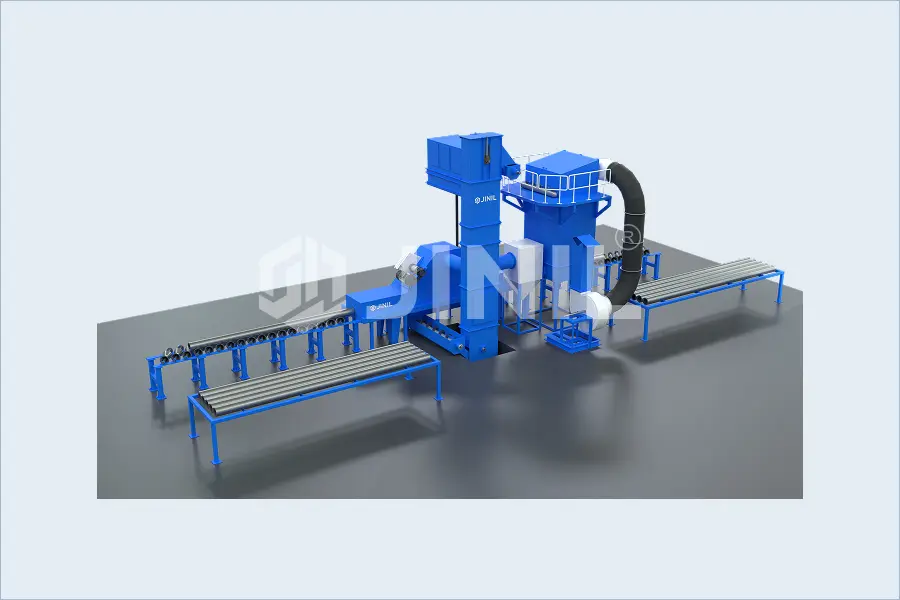

The Airless Shot Blasting Machine - Diabola Conveyor Type is a continuous, high-production system designed for cleaning pipes, round sections, cylindrical jobs, and long components that need rotational blasting. The parts pass through the blast chamber on the conveyor while several blast wheel units clean the whole outer surface evenly in a single pass, with no manual turning required.
What sets this type apart is the diabola rollers, angled V-shaped rollers that rotate the round job and move it forward at once. As the part turns, the abrasive reaches its full circumference for an even finish along the length. It suits fast, automated pipe handling.
Available Configurations
For Round, cylindrical, and spherical parts
Smart Process Overview
Components are loaded onto the inlet conveyor and moved into the blasting chamber. Inside the tunnel, the angled diabola rollers rotate the job while moving it forward, so it turns steadily past the blast wheels.
For pipes and round jobs, the diabola rollers keep the component turning as it moves, so the full outer surface stays exposed to the abrasive stream. This gives uniform cleaning, rust removal, and scale removal all the way around the circumference.
Used abrasive falls into the hopper and is recovered through screw conveyors, a bucket elevator, and an air wash separator for reuse. Dust and fine particles are extracted through the integrated dust collector system. Cleaned components exit through the outlet vestibule ready for coating or further processing.
Built With Precision Components
Blast Wheel Units
10 HP to 30 HP high-efficiency turbines arranged in a multi-wheel configuration for full blasting coverage.
Blasting Chamber (Tunnel)
Heavy-duty chamber with manganese steel liners and replaceable wear plates.
Conveyor System
Angled diabola rollers driven by chain and sprocket that rotate and move the job, with VFD-controlled speed.
Abrasive Circulation System
Includes longitudinal and cross screw conveyors, bucket elevator, and air wash separator for abrasive recovery.
Dust Collection System
Bag filter or cartridge-type dust collector with pulse jet cleaning system.
Sealing System
Rubber curtains at entry and exit to prevent abrasive leakage.
Electrical Control Panel
PLC-based system with interlocks and safety controls.
Engineered Output Parameters
Custom Engineered Mechanism
The Diabolo Type configuration uses specially inclined rollers to support and rotate pipes or round jobs automatically during blasting. The roller angle sets how fast the part travels and how many turns it makes, so the finish is matched precisely to the job.
This steady rotation lets the abrasive reach every part of the outer surface while the component moves through the machine. It is ideal for pipes, cylinders, and round sections needing full circumferential cleaning in continuous flow.
The Airless Shot Blasting Machine – Diabola Conveyor Type is ideal for continuous mass production of pipes and cylindrical jobs requiring complete rotational blasting. It offers high efficiency, repeatable blasting quality, and smooth conveyorized handling.
Its synchronized roller movement and easy integration with coating lines make it a practical choice for modern pipe processing facilities.
Industrial Solutions
The Diabola Conveyor Type machine is suitable for continuous blasting of cylindrical and long components.
External blasting of pipes
Cleaning of cylindrical sections
Rust and scale removal from round jobs
Surface preparation before painting
Pre-treatment before coating or galvanizing
Cleaning of long fabricated tubular components
Industrial Solutions
The Airless Shot Blasting Machine - Diabola Conveyor Type offers several productivity and handling benefits.
Advanced Engineering Highlights
Customization options are available based on production requirements.
Additional System Enhancements
Enables centralized control, real-time monitoring, and process automation across the whole blasting system.
Adjusts roller speed to match the pipe diameter and finish, holding blasting time steady.
Adds a second wheel station to speed up cleaning on pipes and heavier round jobs.
Longer diabola tables at each end to support long pipes and bars into and out of the machine.
Separates contaminants from reusable media to keep blasting consistent and extend abrasive life.
Monitors abrasive level in real time to maintain steady operation and prevent inefficiencies.
Maintains the required abrasive level automatically for continuous blasting without downtime.
Improves safety by stopping sparks from entering the dust system while keeping the area clean.
Blows out abrasive left inside pipes and tubes after blasting for a clean, ready surface.
Lowers operating noise for a safer workplace and compliance with noise standards.
Links blasting to coating so parts flow straight into painting in one continuous line.
It is a conveyorized blasting machine for pipes and round jobs. Diabola rollers rotate the parts during blasting so the full outer surface is cleaned.
Pipes, cylindrical sections, tubes, round steel jobs, bars, shafts, and long tubular fabricated components are ideal for this machine.
The angled rollers rotate round parts while moving them forward, so the whole circumference is cleaned and the finish stays uniform.
Common abrasives include steel shot, steel grit, and other suitable industrial blasting media.
Oil & gas pipelines, steel fabrication, shipbuilding, wind energy, construction, railways, and heavy engineering industries use these systems.
Yes, it includes screw conveyors, bucket elevators, and separator systems for continuous abrasive recovery and reuse.
Yes, it can be synchronized with painting, coating, and primer application lines.
Yes, options such as SCADA controls, heavy-duty rollers, twin wheel stations, automatic loading, soundproofing, and primer line integration are available.
