Tumble-type machine designed for batch blasting of small to medium components. Continuous tumbling action ensures full coverage, efficient cleaning, and cost-effective mass production processing.

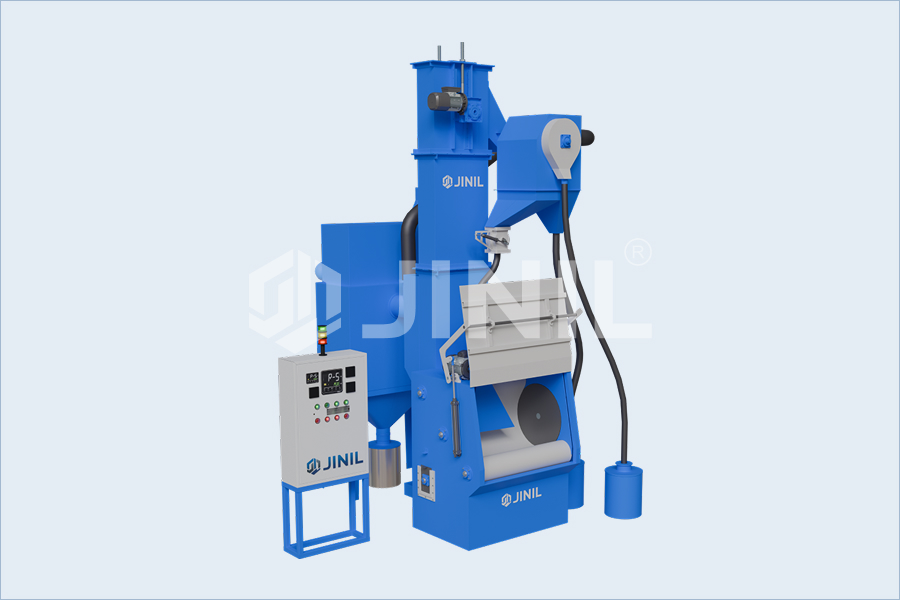

The tumble-type airless shot blasting machine is made for batch cleaning of small to medium parts that need descaling, deburring, rust removal, or shot peening. Parts are loaded together into the chamber, and as it turns, high-speed blast wheels throw steel media across them from every side. The constant tumbling keeps the parts moving.
This gives full 360° coverage, which makes it a solid fit for high-volume parts that must come out with the same finish each time. It comes in several build options to suit different part types and loads.
Available Configurations
Smart Process Overview
Parts are loaded into the tumbling chamber, which may be a drum, rubber belt, or metallic belt depending on the build. Once loaded, the chamber turns steadily, so the parts roll over and change position throughout the cycle.
High-speed blast wheel units throw abrasives such as steel shot or steel grit onto the moving parts. Because the load keeps turning, every surface is exposed to the stream for even cleaning.
Spent abrasive drops into the recovery system, passing through the screw conveyor, bucket elevator, and separator. Clean media goes back into use, while dust and fines are drawn off by the dust collector. Finished parts are unloaded by hand, by hydraulics, or automatically, based on the chosen setup.
Built With Precision Components
Blast Wheel Unit
High-efficiency blasting turbine from 7.5 HP to 30 HP, with a replaceable control cage and blades.
Tumbling System
Drum, rubber belt, or steel belt design, chosen to match how the parts need to be handled.
Abrasive Circulation System
Screw conveyor, bucket elevator, and air-wash separator that recover and reuse abrasives continuously.
Dust Collection System
Cartridge or bag filter collector that controls pollution and keeps the machine running cleaner.
Loading & Unloading System
Manual, hydraulic, or automatic discharge, selected to suit the production setup.
Electrical Control Panel
PLC or relay-based panel with interlocks and built-in operational safety systems.
Wear Protection Liners
Manganese steel or replaceable liners that guard the machine internals against abrasive wear.
The fully automatic airless shot blasting machine in a tumble configuration is a proven pick for mass-produced parts that need steady, even blasting. It offers different chamber options for varied materials and part sizes, while keeping maintenance low.
The machine runs with garnet, steel shot, and steel grit, so it covers a broad range of cleaning and finishing jobs. Custom builds can also be arranged to match specific production needs.
Tumble-type blasting is well-suited to industries that produce small, sturdy parts in large batches. Forging and foundry units, fastener makers, and automotive plants use it to clean and finish components at volume without handling each one separately.
Complete Support Portfolio
The tumble-type machine suits many finishing and cleaning jobs across production work.
Descaling of forged and heat-treated parts
Rust removal from castings
Deburring of machined components
Shot peening to improve fatigue life
Surface preparation before painting or coating
Cleaning of fasteners, springs, and gears
Operational Performance Benefits
The tumble-type machine brings clear gains for batch production.
Advanced Engineering Highlights
Optional customization can be arranged to suit specific production needs.
Additional System Enhancements
Automates process control and live monitoring for simpler operation and better productivity.
Controls motor speed for smoother running and better energy use during blasting.
Loads parts automatically to cut manual handling, improve safety, and raise output.
Pulls unwanted contaminants from the media to keep blasting quality steady and extend abrasive life.
Tracks abrasive quantity continuously so blasting stays uninterrupted and stable.
Lowers operating noise for a safer, more comfortable working area.
Stops sparks entering the dust system while keeping operation clean and safe.
Clears leftover abrasive and dust from parts after blasting for a cleaner finish.
Shields sensitive parts from impact damage while keeping them clean and effective.
Regulates abrasive flow automatically for even blasting and controlled media use.
Stores preset blasting settings for repeatable runs, quicker setup, and steady quality.
It is a batch machine where parts tumble together inside a rotating chamber while blast wheels throw steel media at them. The tumbling turns the parts so every side is cleaned evenly in one cycle.
It is ideal for fasteners, springs, gears, castings, forgings, machined parts, and other small to medium-sized components.
Drum-type machines use a rotating drum, while belt-type machines use rubber or steel belts for tumbling and handling components.
It runs steel shot and steel grit for most cleaning and peening, with garnet used for finer work. The media is picked to match the part and the finish needed.
Automotive, foundry, aerospace, fasteners, railways, valve manufacturing, and heat treatment industries commonly use these machines.
The machine can be supplied with manual, hydraulic, or automatic loading and unloading systems with PLC automation options.
Yes, the machine includes a recovery system with a conveyor, an elevator, and a separator for continuous abrasive reuse.
Yes, custom options such as VFD drives, loading systems, soundproofing, sensors, and heat-resistant designs can be provided.
