Airless system for rust removal, descaling, and uniform cleaning of coiled metal products. Controlled coil handling ensures even coverage and a consistent finish without damaging the wire.

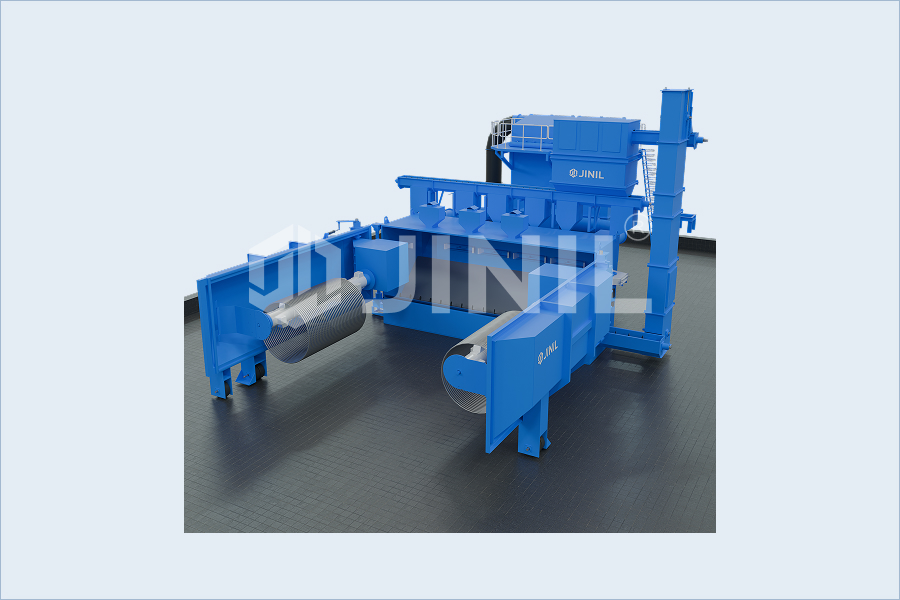

The wire coil shot blasting machine cleans and descales wire rod coils, spring wire, drawn wire, and rolled steel coils before the next stage of processing. The coil is held inside the chamber and turned steadily while blast wheels throw steel media across it, removing mill scale, rust, and oxide from the surface.
The real difficulty with a coil is reaching between its wraps without harming the wire. This automatic wire rod coil shot blasting machine handles that by rotating the coil in a controlled way, one direction then the other, so the layers open up and every part of the surface meets the abrasive stream. The coil comes out evenly descaled and ready for drawing, galvanizing, or coating.
Ideal For
SPECIALLY CUSTOMIZED FOR SCALE REMOVAL FOR WIRES
Smart Process Overview
The coil is loaded onto a rotating mandrel or support arms and moved into the blast chamber. A PLC turns the coil slowly one way, then reverses it, so the wraps spread and the stream can reach between the layers. Rotation time and direction can be set to suit the coil.
Several blast wheel units are positioned around the coil, throwing steel shot or steel grit at high speed onto the full surface. As the coil keeps turning, both the outer and inner faces are cleaned to the same standard.
Used abrasive falls into the hopper and is carried by the elevator and separator, which cleans it for reuse. The dust collector draws off dust and fines, and the finished coil is unloaded for the next process.
Built With Precision Components
Coil Mandrel / Support Arms
Hold the coil and rotate it both ways so the whole surface is exposed to the stream.
Blast Wheel Units
Multiple turbines are set around the coil to throw media onto the full surface at once.
Blast Chamber
Manganese steel-lined chamber with replaceable wear plates to take constant impact.
Abrasive Circulation System
Elevator, screw conveyor, and separator that recover and clean media for reuse.
Dust Collection System
Cartridge or bag filter collector that keeps the chamber and work area clean.
PLC Control Panel
Sets rotation direction, timing, and cycle for consistent, repeatable blasting.
Wear-Resistant Liners
Manganese or replaceable liners that protect the machine from abrasive wear.
This machine suits wire mills and spring shops that need a clean, even surface without pickling. Controlled rotation reaches between the coil layers, so the wire is descaled but not deformed or tangled, ready for drawing or coating.
It runs on steel shot and grit, recovers and reuses media on its own, and reaches a clean finish grade for downstream lines. Coil diameter, weight capacity, and output can all be built to suit the plant, which is why people choose Jinil as their coil shot blasting machine manufacturer.
Complete Support Portfolio
The wire coil machine suits descaling and cleaning of coiled and drawn steel.
Descaling wire rod coils before drawing
Cleaning the spring and valve wire
Surface prep of welding and fastener wire
Removing mill scale and rust from coils
Preparing wire before galvanizing or coating
Cleaning high-carbon and alloy steel wire
Operational Performance Benefits
The wire coil machine brings gains for wire and spring work.
Advanced Engineering Highlights
Customization options are available based on production needs.
Additional System Enhancements
Lets one coil blast while the next is loaded, keeping the machine working with little idle time.
Sets blast wheel speed for thin or soft wire so cleaning stays effective without harm.
Controls rotation, timing, and cycle from one screen for simple, repeatable operation.
Draws contaminants out of the media so cleaning quality remains intact and the abrasive lasts longer.
Watches media quantity so long runs blast without interruption.
Loads and unloads coils to cut manual effort and keep output steady.
Keeps the dust system clean and blocks sparks for safer running.
Clears leftover abrasive from the coil after blasting for a clean, ready surface.
Regulates media flow automatically for even blasting and controlled use.
Stores settings per coil type for quick, repeatable runs at steady quality.
It is an airless machine that cleans and descales wire coils. The coil turns while blast wheels throw steel media at it, removing scale and rust evenly.
The coil is rotated slowly one way, then the other, which opens the wraps so the abrasive stream reaches both the outer and inner surfaces.
No. The coil is held and turned in a controlled way, and turbine speed can be tuned, so the wire is descaled without deforming or tangling.
Wire rod coils, spring wire, valve wire, welding wire, and fastener wire, including high-carbon and alloy steel.
Steel shot and steel grit are chosen to match the wire and descaling grade needed. The media is recovered and reused automatically.
Blasting is cleaner, faster, and avoids acid handling. It reaches a good descaling grade while cutting the cost and environmental load of pickling.
Yes. With a dual-station setup, one coil blasts while the next is loaded, which keeps the machine running and raises output.
Yes, coil size, weight capacity, rotation timing, VFD turbine control, and automatic handling can all be set to the plant's needs.
