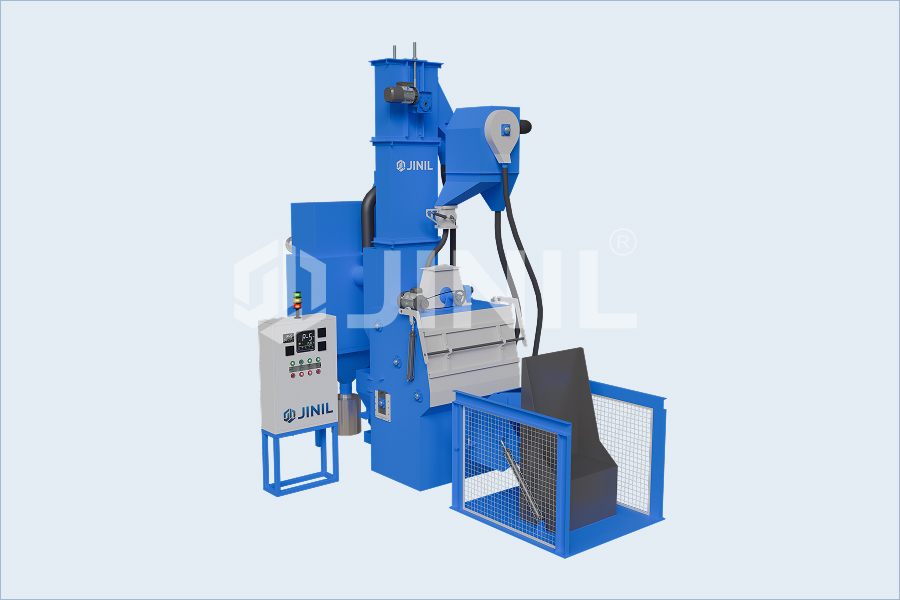

Tumble-type blasting machine with loader arrangement for continuous batch processing of small parts. Automated loading, uniform blasting coverage, and high productivity improve cleaning efficiency with reduced manpower.
The tumble-type shot-blasting machine with automatic loader is a batch machine that loads, blasts, and unloads parts with little manual effort. A skip hoist or tipping bucket lifts each batch and tips it into the tumbling chamber, where blast wheels clean the parts as they turn. Once the cycle ends, the parts are discharged automatically, so one batch follows another with barely a pause.
This automatic tumble shot blasting machine suits plants running the same small to medium parts in high volume, where loading each batch by hand would slow the line. The loading system keeps the machine fed steadily, which raises output and cuts the manpower needed on the floor.
Available Configurations
SPECIALLY FOR AUTOMATIC LOADING NEEDS
Smart Process Overview
Parts are dumped into a skip hoist or tipping bucket, which automatically transfers them to the tumbling chamber by raising and dumping. From there, a blast wheel unit discharges steel media onto the parts, and the rotating belt ensures all surfaces get an even treatment.
With no loading and unloading being required by the operator, this machine runs almost on a 24-hour cycle. A PLC controls this by having an interlocking sequence so that loading, blasting, and unloading follow on without the need for a person doing each sequence.
At the end of the cycle, the belt moves in the opposite direction, or the vibrating conveyor moves the clean parts out of the machine. Wasted abrasive will be dropped into the recycling system and collected, cleaned, and recycled again. The dust collector collects the dust.
Built With Precision Components
Skip Hoist / Tipping Bucket
Lifts each batch and tips it into the chamber, loading the machine without manual handling.
Blast Wheel Unit
High-efficiency turbine from 7.5 HP to 30 HP that throws media onto the tumbling parts.
Tumbling Chamber
Drum, rubber belt, or steel belt that turns the parts so every side is blasted evenly.
Discharge Conveyor
Vibrating or reversing conveyor that carries cleaned parts out at the end of the cycle.
Abrasive Circulation System
Screw conveyor, elevator, and separator that recover and reuse abrasives continuously.
PLC Control Panel
Runs the load, blast, and unload sequence through interlocks for safe automatic operation.
Dust Collection System
A cartridge or bag filter collector that keeps the machine clean and controls dust.
The loader-type shot blasting machine suits plants that clean the same parts in large numbers and want to keep manual handling low. The automatic loader feeds each batch on its own, so the machine runs close to continuously and steady output is easier to hold.
It works with garnet, steel shot, and steel grit, covering a wide range of cleaning and peening jobs. Custom loading and unloading setups can be arranged to match the production line.
Complete Support Portfolio
The loader-fed machine suits repeat, high-batch work where parts arrive in bulk and must keep flowing.
Desanding of foundry castings in continuous batches
Descaling forgings and heat-treated parts
Deflashing and deburring of mass-produced components
Shot peening of brake discs, gears, and springs
Cleaning ferrous and non-ferrous cast parts
Surface prep of bulk parts before coating
Operational Performance Benefits
The loader arrangement changes how the machine earns its keep on a busy floor.
Advanced Engineering Highlights
Build options are set around unattended, repeat-cycle running.
Additional System Enhancements
Lifts and tips lighter batches into the chamber on a set cycle for hands-free feeding.
Handles heavier loads, raising and tipping bulk parts into the machine with controlled motion.
Links loading, blasting, and discharge into one safe automatic sequence with minimal input.
Carries cleaned parts out to bins or the next process as each batch finishes.
Sets tumble dwell time to match part weight and shape for even, controlled cleaning.
Watches media quantity so long unattended runs keep blasting without interruption.
Draws contaminants out of the abrasive to maintain cleaning quality and extend media life.
Keeps the dust system clean and blocks sparks for safer continuous operation.
Reduces the height at which parts fall during loading to protect fragile castings.
Stores blast settings per part so repeat batches start quickly at the same quality.
It is a batch tumble machine fitted with a skip hoist or tipping bucket that loads parts on its own. The machine loads, blasts, and unloads with little manual effort, running close to a continuous cycle.
A skip hoist or bucket lifts each batch and tips it into the chamber. The lift is electric for lighter loads or hydraulic for heavier ones, and a PLC controls the sequence through interlocks.
It is ideal for fasteners, springs, gears, castings, forgings, machined parts, and other small to medium-sized components.
At the end of the cycle, the belt runs in reverse, or a vibrating conveyor carries the parts out. This keeps unloading quick and hands-free between batches.
It runs steel shot and steel grit for most cleaning and peening, with garnet used for finer work. The media is chosen to match the part and the finish needed.
Yes. Because loading and unloading are automatic, one operator can oversee the machine instead of handling every batch, which lowers labour and raises output.
Yes, the machine includes a recovery system with a conveyor, an elevator, and a separator for continuous abrasive reuse.
Yes, custom options like VFD drives, loading systems, sensors, soundproofing, and heat-resistant designs can be provided.
