Pipe Shot Blasting Machine

Jinil Shot Blast is a pipe shot blasting machine manufacturer for plants that need clean pipes before painting or coating. Rust, mill scale, and old coating on a pipe stop new paint from sticking properly. Our airless pipe shot blasting machine cleans all of this off and gets the pipe ready for coating. Pipe makers, fabricators, and coating plants rely on it for surface preparation. We set up each machine for your pipe diameter, length, and output, and build it in our own facility.

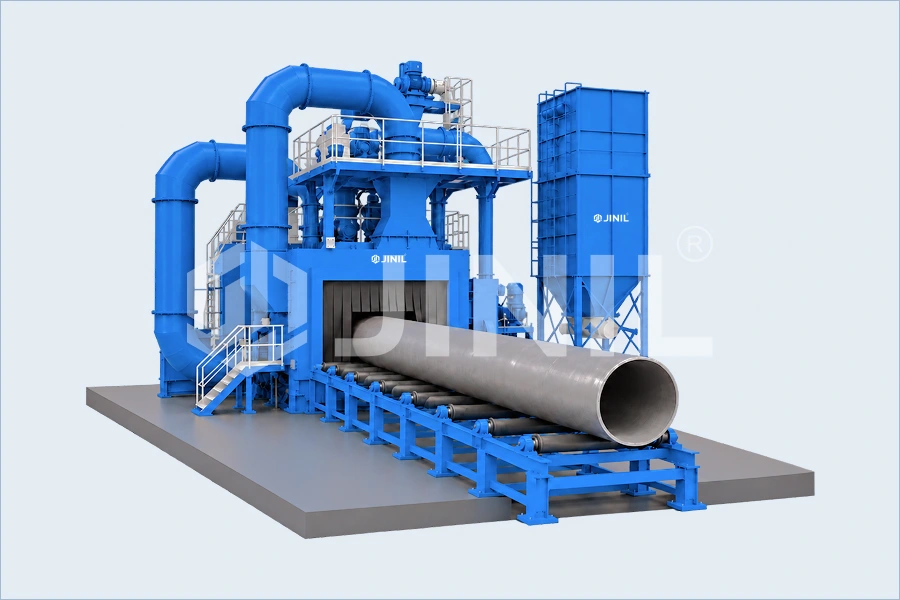

Automatic Pipe Shot Blasting Machine Manufacturer In India

Jinil builds custom turnkey pipe blasting lines for line pipes, structural tubes, and steel pipes of different sizes. Turnkey simply means we handle the full job, from design to a machine that’s ready to run. When operators blast pipes by hand, long pipes take a lot of time, and each operator’s finish looks a bit different. With an automatic pipe blasting machine, that problem goes away. Inside, the rollers are tilted just a little, so the pipe turns as it moves forward. While it turns, the blast wheels clean the outer surface using steel shot or grit.

As an automatic pipe shot blasting machine manufacturer in India, we design and build every line in our own factory, from the blast wheels to the roller conveyor. If you need the inside cleaned as well, we can add an internal blasting machine setup for the bore. We start by looking at your pipe sizes and daily count, and only then plan the line. Our service team stays with you after start-up too, for commissioning, spare parts, AMCs, and 24/7 support.

Smart Process Overview

Working Principle

Shot blasting pipes removes rust, mill scale, and old coating before painting. It starts with loading, when the operator places the pipe on the infeed roller conveyor. The rollers sit at a slight angle, so in the moving-through step the pipe turns on its own and slowly enters the chamber.

During blasting, steel shot or grit from the blast wheels hits the pipe. Because the pipe keeps rotating, the blast reaches the full outer surface, and the wheel layout is set for your pipe size.

For abrasive recovery and cleaning, used shot drops into a hopper. It then goes up through a screw conveyor and bucket elevator to the separator, where dust, fines, and broken pieces are removed. The dust collector draws dust out of the chamber the whole time the machine runs.

Once the pipe is clean, unloading is the last step. It leaves on the outfeed conveyor and can go straight for coating.

Built With Precision Components

Main Components

1

Blast Chamber

The steel chamber where the blasting is done.

2

Blast Wheels

They throw steel shot or grit at high speed. If your pipes are big or your output is high, you may need a few more.

3

Skew Roller Conveyor

The angled rollers turn the pipe and move it forward at the same time.

4

Abrasive Recovery System

Used shot travels back through a hopper, a screw conveyor, and a bucket elevator.

5

Separator

Dust, fines, and broken shot are taken out here, so only good shot is used again.

6

Dust Collector

Its cartridge or bag filters pull dust out of the chamber.

7

Wear Protection Liners

Shot hits the inner walls all day, so these liners take the impact and can be replaced when worn.

8

Entry and Exit Seals

Fitted at both ends, they stop most of the shot from escaping as pipes go in and out.

9

Control Panel

One panel, from which the operator runs the wheels, conveyors, and dust collector.

Why Choose Jinil Shot Blast as a Pipe Shot Blasting Machine Manufacturer?

Jinil is a leading pipe shot blasting machine manufacturer in India. We design and build pipe blasting machines, internal blasting setups, roller conveyors, abrasive recovery, and dust collection systems. The main parts are designed and built in our own factory, so they are made to work together, and you deal with one team from the first layout to after-sales support.

With in-house manufacturing, everything is designed and made in our own factory. We plan the right fit around your pipe diameter, length, and output. You get a complete line, as the machine, conveyors, and dust collection come from one supplier. For easy installation, we plan the layout together with your team. Our after-sales care covers spare parts, upgrades, and AMCs.

From Enquiry to Installation

It begins with Requirement Analysis, where we check your pipe sizes, output, and floor space. Then, in Machine Configuration, we plan the wheels, conveyors, and automation. The last stage is Installation and Commissioning, where our team installs the machine, sets it up, and tests it.

There’s no fixed price for a Pipe Shot Blasting Machine. The cost depends on the pipe size range, number of blast wheels, conveyor length, and automation level. We quote based on your actual pipes and output.

Related Industries You May Like

Pipes go into very different jobs, from oil and gas lines and water pipelines to boiler tubes and structural frames. In each case, the coating only lasts if the pipe is cleaned properly first. As a Pipe Shot Blasting Machine Manufacturer in India, Jinil builds machines to suit each of these industries, whether you clean small tubes in large numbers or long, heavy line pipes. For plants that need the bore cleaned, we can also add internal blasting.

Heavy Machinery

Fabrication

Oil & gas

Steel plant

PEB

Industrial Solutions

Applications

Plants use our Pipe Shot Blasting Machines to clean and prepare:

Steel pipes before coating: Paint and epoxy won’t bond to rust. Blasting takes it off and leaves the steel slightly rough, so the coating has something to hold on to.

Oil and gas line pipes: A line pipe can be several metres long. The machine keeps the finish the same along that whole length before anti-corrosion coating.

Water and sewage pipelines: Once they’re buried, nobody can recoat them easily. That’s why the surface is cleaned well before lining or wrapping.

Structural tubes and hollow sections: In frames and structures, every side of a tube is on show. That’s why we clean it all the way round.

Boiler and pressure pipes: Inspectors need to see clean metal. Weld marks and scale are blasted off first, and then the pipe goes for inspection or coating.

Inner pipe surfaces: The bore is cleaned using the internal blasting setup.

Old and reused pipes: Worn coating and rust are stripped right back to bare metal, ready for a fresh coat.

Industrial Solutions

Advantages

A Jinil Pipe Shot Blasting Machine, often called a pipe sandblasting machine, helps your coating line in these ways:

Coating lasts longer: Paint and epoxy need something to bite into. After blasting, the pipe surface is rough and clean, so the coating stays on much longer.
Higher output: There’s no gap between jobs. One pipe goes in as the last one comes out, which adds up to more pipes by the end of a shift.
Lower running costs: The machine collects and reuses the shot many times. You end up buying fresh shot less often.
Cleaner workplace: Dust doesn’t spread across the shop floor. It stays trapped in the closed chamber until the dust collector draws it away.
Easy maintenance: Wear liners can be replaced when they wear out, and access doors make routine checks simple.

Advanced Engineering Highlights

Design Features

This machine is built for long shifts and heavy pipes:

Blast wheels placed to cover the full pipe surface
Skew rollers set for your pipe diameter range
Rubber or polyurethane-coated rollers to protect the pipe
Replaceable wear liners where the shot hits hardest
Brush or air blow-off at the exit to clear leftover shot
Easy-access doors for maintenance

Additional System Enhancements

Optional Features

Depending on your line, Jinil can add:

VFD speed control: Adjust the pipe speed to suit the size and finish.
PLC with HMI: Simple controls, with saved settings for each pipe size.
Internal blasting unit: Cleans the inside of the pipe as well.
Automatic loading and unloading: Heavy pipes are moved in and out by the system, so your team lifts less.

Optional Accessories

We can also supply:

Dust collector with spark arrestor

A spark arrestor prevents hot sparks from reaching the filters.

Magnetic separator

It pulls out small metal particles mixed in with the shot.

Abrasive level sensor

You’ll know when the shot is running low and needs a top-up.

Soundproof enclosure

Noise around the machine drops, which helps people working nearby.

Coating line integration

Pipes can go straight from the blaster to the paint line.

Frequently Asked Questions

Clear answers to common questions about Jinil's shot blasting machines, surface preparation solutions, and engineering support—helping you make informed decisions with confidence.

1. What is a Pipe Shot Blasting Machine? +

It’s a machine that cleans steel pipes. A pipe shot blasting machine fires steel shot or grit at the pipe, which knocks off rust, mill scale, and dirt. The pipe comes out with a rough finish, and that’s what helps paint and coating stay on.

2. How does a Pipe Blasting Machine work? +

Angled rollers do two jobs at once: they keep the pipe turning and push it into the chamber. Blast wheels hit it with shot, and the used shot is collected, cleaned, and reused. The dust collector keeps pulling dust out during the whole cycle.

3. What types of pipes can be processed using a Pipe Shot Blasting Machine? +

Carbon steel and alloy steel pipes, line pipes, structural tubes, and hollow sections can all be cleaned. Our team sets up the machine for your diameter range and pipe length.

4. Can a Pipe Shot Blasting Machine clean both internal and external surfaces? +

Yes. The standard setup only cleans the outer side of the pipe. If you also need the inside cleaned, we can add an internal blasting machine setup.

5. What are the benefits of shot blasting pipes? +

Coatings need a clean, rough surface to grip, and blasting gives the pipe exactly that. Your team also does much less hand work, and every batch of pipes comes out with the same finish.

6. What is a Steel Pipe Shot Blasting Machine used for? +

It cleans steel pipes before painting, epoxy coating, or wrapping. Pipe makers, oil and gas suppliers, and pipeline contractors use a steel pipe shot blasting machine the most.

7. How do I choose the right Pipe Shot Blasting Machine? +

Before anything else, note down your pipe size range, your longest pipe, and the number of pipes you clean daily. Also see if you need the inside of the pipe cleaned. Send these details to our team, and we’ll suggest the right machine.

8. Can the machine be customized for different pipe sizes? +

Yes. When we install it, our team adjusts the roller angle, wheel positions, and conveyor speed for your pipes. Depending on your size range, one machine can often handle different pipe diameters.
